Foreign Matter Contamination Prevention Measures
Foreign matter contamination prevention measures are major concerns for business. Goldwin has developed items such as the next-generation hood with improved foreign matter drop prevention functions without losing comfort, a new shield that prevents the lens from fogging up with a new concept, and new double-lens goggles that reduce the difference in temperature between the inside and outside of the lens to prevent the lens from fogging up. We offer new products with improved performance from our new designs.
Goldwin is researching and developing not only the maintenance of environmental cleanliness in bio-clean rooms but also high-performance products with durability and comfort under the theme contamination control of humans and clothing. With these next-generation product lines and our solutions based on entirely new concepts, we contribute to the cleaning of customers' work environments.
 A hood and flat shield with a foreign matter contamination prevention function and improved comfort
 Recall of pharmaceutical products

Foreign matter mixed into pharmaceutical products include substances from the human body or clothing such as skin hairs, skin, and lint. Goldwin, who has achieved advanced foreign matter contamination prevention function by enhancing the dust prevention functional property of clothing, proposes the use of a hood and shield to improve comfort further in addition to added dust resistance.
 A comparison between foreign matter contamination preventive clothing and regular clothing
Preventing hair from the head, eyebrows and eyelashes from falling with a shield and wearing a foreign matter preventive hood to retain the shield.
Reviewing the shield retention method and hood design enabled mounting and dismounting the shield easier than conventional products. In addition, we have also achieved an increase in comfort by considering heat and breath flow in the design and changing the material of the hem area to mesh fabric in order to take into account measures to address high temperatures.
 Hood and Flat Shield
Complexing the material improved comfort.
Maintaining distance between the product and the body prevents the shield from fogging up.
New Product
PA1483
Specifications
  • Grade C or higher (Class 10000 or higher)
  • IV + Shamilan + mesh fabric
  • Implementing measures to reduce high temperatures, such as the use of mesh fabric for the hem area improved comfort and contributed to increase workability.
  • Design in consideration of heat or breath flow
  • Easier mounting and dismounting of the shield
  • Use in combination with PA008BTS shield
The breathable material used for the brim and top areas prevents the shield from fogging up.
The transparent film resists fogging up and ensures good visibility and comfortable workability.
Using mesh fabric for the mouth area and back portions of the ears improved breathability significantly. A good balance between the reduction in weight and measures to reduce high temperatures is achieved.
 Dust-resistant Material IV
Highly breathable material supports comfortable work.
This material has a taffta fabric (simple and plain fabric) structure to emphasize breathability. It consists of polyester filament yarns, and conductive threads are used for the 4.5 mm pitch area.
 Comfort Material Shamilan
The crispness and hempen touch of Shamilan increases the cooling effect.
The twist technique of the special polyester yarn ensures breathability and the quick-drying property. It reduces unpleasant humidity and the sticky feeling due to sweating and controls the moisture inside the clothing.
 Foreign Matter Preventive Hood
A foreign matter preventive hood with an openable and closable front area
New Product
PA1485
Specifications
  • Grade C or higher (Class 10000 or higher)
  • Dust-resistant material IV
  • Zippers and the cords on both sides of the mask facilitate the retention and opening/closing of the mask.
  • Supports various work such as wearing/removing of the mask.
  • Use in combination with PA088BH shield
* The openable and closable mask area improved work efficiency and made it easier to wear and remove the mask compared to conventional products. The hood balances the foreign matter contamination prevention measures and comfort. Use this product in combination with a shield.

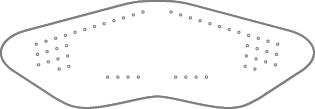

 Shield
A new shield that became harder to fog up
New Product
PA008BTS
Specifications
  • Grade C or higher (Class 10000 or higher)
  • Film thickness of 0.3 mm (300 μ)
  • Anti-fogging finish on both sides
  • Holes (52 holes) 4 mm in diameter prevent the shield from fogging up
  • Containing 50 shield / lot
  • Use in combination with PA1483 foreign matter preventive hood
* We made improvements to the conventional product to provide a better anti-fogging property.
* To clean this shield, wipe with water or alcohol gently using a soft cloth.
 Double-lens Goggles
Superior anti-fogging property provided from the anti-fogging double lenses
New Product
PA-YG512
Specifications
  • Grade C or higher (Class 10000 or higher)

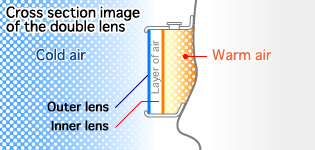

  • This product works on the same principle as the bullet train or airplane windows. Creating the insulating layer of air between the two lenses reduces the difference in temperature between the inside and outside the lenses and prevents the lenses from fogging up.
  • Containing 10 pairs of goggles / lot
  • Spare lens [PA-YG51L] is available.
Apply the steam of 40ﾟC to the lenses and measure the time when they start to fog up
Mist-less lens (single lens)
3 minutes and 50 seconds
Double lens
9 minutes 00 seconds
* The anti-fogging property may vary a lot depending on the actual conditions of use (temperature, humidity, and amount of sweating).
